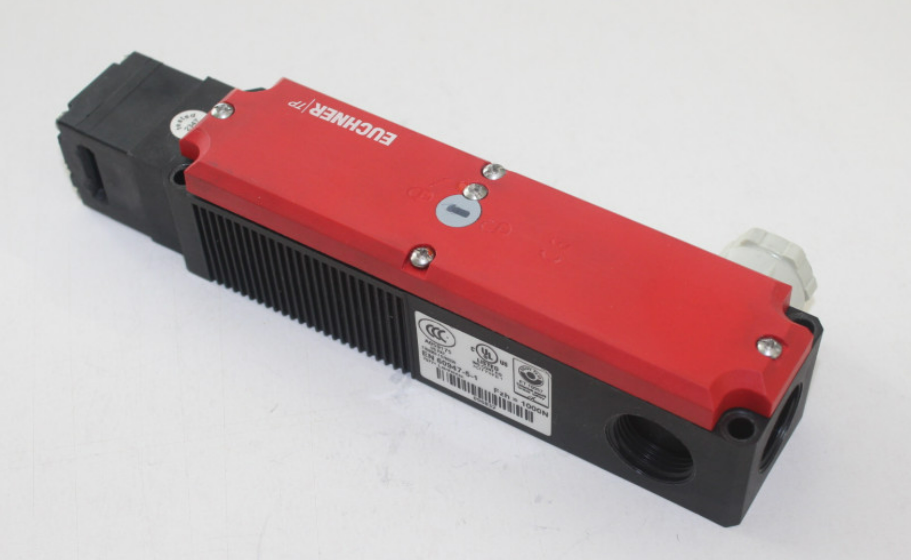

Euchner TP4-2131A024M Safety Switch TP With Door Monitoring Contact 084145

  • 1
  • 2

Brand Name : Euchner

Model Number : TP4-2131A024M

Place of Origin : Germany

MOQ : 1

Price : variable

Payment Terms : T/T

Supply Ability : 30PCS/WEEKS

Delivery Time : Negotiate

Packaging Details : Carton

Ordernumber : 084145

Ambient temperature : -20 ... 55 °C

Housing material : Reinforced thermoplastic

Degree of protection : IP67

Actuation frequency : 1200 1/h

Retention force : 10 N

Extraction force : 20 N

Actuating force : 10 N

Contact Now

Euchner TP4-2131A024M Safety Switch TP With Door Monitoring Contact 084145

Features

• Auxiliary release on the front
• With door monitoring contact
• Increased horizontal overtravel

Solenoid operating voltage

AC/DC 24 V +10%, -15%

Guard locking type

TP4 Open-circuit current principle, guard locking by applying voltage to the guard locking solenoid. Release by spring force.

Switching element

2131 Slow-action switching contact 2 NC + 1 NO + 1 NC (door monitoring contact)

Auxiliary release

Is used for releasing the guard locking with the aid of a tool. To protect against tampering, the auxiliary release is sealed with sealing lacquer.

Mechanical figures and environment

Housing material Reinforced thermoplastic
Ground 　
Net 0,5 kg
Ambient temperature -20 ... 55 °C
Degree of protection IP67
Mechanical life 1 x 106
Contact material Silver alloy, gold flashed
Switching principle Slow-action switching contact
Installation position Any
Number of door position positively driven contacts 2
Number of NC contacts 1
Number of NO contacts 1
Connection 　
3 x M20 x 1.5
Approach speed 　
max. 20 m/min
Actuation frequency 1200 1/h
Guard locking principle Open-circuit current principle
Locking force F 1300 N
Locking force F 1000 N
Retention force 10 N
Extraction force 20 N
Actuating force 10 N
