1746-A13 Allen Bradley SLC 13 Slots Chassis

  • 1
  • 2

Brand Name : Allen Bradley

Model Number : 1746-A13

Certification : CE

Place of Origin : USA

MOQ : 1

Price : variable

Payment Terms : T/T

Supply Ability : 30PCS/WEEKS

Delivery Time : 3-5DAYS

Packaging Details : Carton

Description : Slc 13 Slots Chassis 6.73 X 19.78 X 5.71 Inches Custom

Manufacturer : Allen Bradley

Product No : 1746-A13

Series : SLC 500

Mounting : Panel Mount

Hardware Type : I/O Chassis

Slots : 13

Module Type : Chassis

Dimensions : 6.73 x 19.78 x 5.71 inches

Contact Now

1746-A13 Allen Bradley SLC 13 Slots Chassis

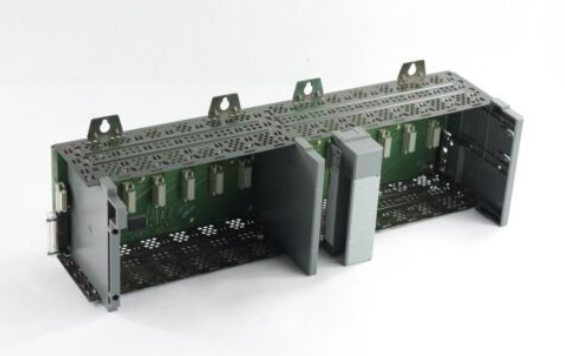

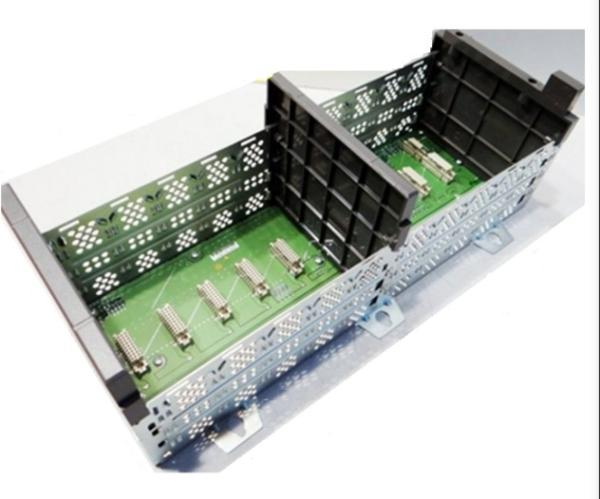

The Allen-Bradley 1746-A13 is an SLC500 chassis. It has Thirteen (13) slots, providing backplane connections and housing to SLC500 Programmable Logic Controller (PLC) modules. This chassis has Eight (8) mounting tabs and installed directly to an enclosure subpanel. This chassis has physical dimensions of 50.2 x 17.1 x 14.5 cm (20.1 x 6.8 x 5.8 in) and weighs 1.9 kg (4.2 lbs).

The Allen-Bradley 1746-A13 is a Thirteen (13) slot chassis from the SLC500 Programmable Logic Controller (PLC) platform. This chassis provides backplane connections and housing to Central Processing Unit (CPU), I/O, Communication and specialty modules as well as the system power supply.

The 1746-A13 is provided with Eight (8) mounting tabs, used for direct panel mounting of the chassis to the enclosure’s subpanel. When mounting the module to the subpanel, appropriate screws are M4 or M5 (#10 or #12) phillips screw. Recommended mounting clearance are minimum of 15.3 cm (6.0 in) for top clearance and minimum of >10.2 cm (4.0 in) side clearance. When used with a rack extender cable such as 1746-C7, minimum spacing is 7.7 to 10.2 cm (3.0 to 4.0 in).

1746-A13 Allen Bradley SLC 13 Slots Chassis

Technical Specifications

Module Type Chassis
Brand Allen-Bradley
Part Number/Catalog No. 1746-A13
Series SLC 500
Mounting Panel Mount
Hardware Type I/O Chassis
Slots 13
Dimensions 6.73 x 19.78 x 5.71 inches
Manufacturer Rockwell Automation
Weight 1.9 kg (4.2 lbs)
Mounting Clearance Top clearance: >15.3 cm (6.0 in) Side Clearance: >10.2 cm (4.0 in)
Relative Humidity 5 to 95% (without condensation)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Operating Temperature 0°C to +60°C (+32°F to +140°F)
No. of mounting tabs Eight (8)
Physical Dimensions 50.2 x 17.1 x 14.5 cm (20.1 x 6.8 x 5.8 in)
Backplane Current 5.1V dc @ 10A; 24V dc @ 2.88A
No. of slots Thirteen (13) slots
