Ifm Tk6110 Temperature Switch With Intuitive Switch Point Setting

Brand Name : IFM

Model Number : TK6110

Place of Origin : Germany

MOQ : 1pc

Price : $200-$300

Payment Terms : T/T

Supply Ability : 50pcs

Delivery Time : 3_5weeks

Packaging Details : new box

Description : OEM Temperature Sensor Switch With Adjustment Dials Tk6110

warranty : 1year

Measuring range : -20...140 °C

Installation length EL [mm : 9

Media : liquids and gases

Pressure rating [bar : 9

Output signal : switching signal

Contact Now

Product characteristics Ifm Tk6110 Temperature Switch With Intuitive Switch Point Setting

Number of inputs and outputs

Number of digital outputs: 2

Measuring range

-20...140 °C

-4...284 °F

Process connection

threaded connection G 1/4

Installation length EL [mm]

Application

System	gold-plated contacts
Measuring element	1 x Pt 1000; (to DIN EN 60751, class A)
Media	liquids and gases
Medium temperature [°C]	-40...145
Pressure rating [bar]	400

Electrical data

Operating voltage [V]	9.6...32 DC; (cULus - Class 2 source required)
Current consumption [mA]	< 30
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.5

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Total number of outputs	2
Output signal	switching signal
Electrical design	PNP
Number of digital outputs	2
Output function	complementary
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	500
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Measuring/setting range

Measuring range

-20...140 °C

-4...284 °F

Set point SP

-16...140 °C

3...284 °F

Reset point rP

-20...136 °C

-4...277 °F

Accuracy / deviations

Temperature drift per 10 K [K]	0.1 **)
Repeatability [K]	± 0,1
Setting accuracy [K]	± 3

Reaction times

Dynamic response T05 / T09 [s]	1 / 3; (according to DIN EN 60751)

Software / programming

Adjustment of the switch point	setting rings

Operating conditions

Ambient temperature [°C]

-40...80

Note on ambient temperature

at medium temperature: < 80 °C

-40...50 °C

at medium temperature: < 145 °C

Storage temperature [°C]

-40...100

Protection

IP 67

Tests / approvals

EMC

DIN EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
DIN EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V

Shock resistance

DIN IEC 68-2-27

50 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

20 g (10...2000 Hz)

MTTF [years]

643.1

UL approval

UL approval number

K018

Mechanical data

Weight [g]	104.5
Material	stainless steel (1.4404 / 316L); PC; PBT; FKM
Materials (wetted parts)	stainless steel (1.4404 / 316L); FKM
Tightening torque [Nm]	35
Process connection	threaded connection G 1/4
Probe diameter [mm]	6
Installation length EL [mm]	50

Displays / operating elements

Display

Power	LED, green
Switching status	LED, yellow

Remarks

**) In case of deviation from the reference condition 25 °C

The values for accuracy apply to flowing water.

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

Product Tags:

IFM TK6110 temperature switch

temperature switch with intuitive setting

IFM pressure sensor with warranty

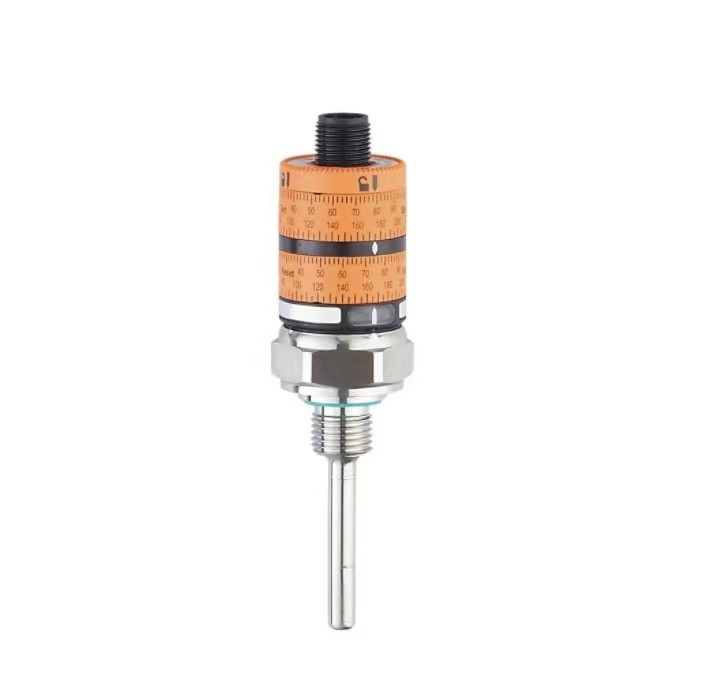

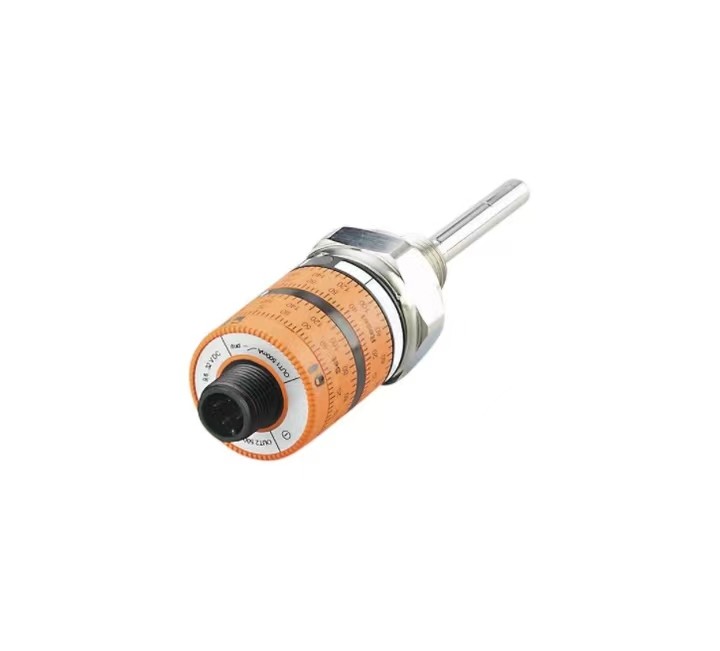

Ifm Tk6110 Temperature Switch With Intuitive Switch Point Setting Images
