IFM IS5008 6M INDUCTIVE SENSOR

Brand Name : IFM

Model Number : IS5008

Place of Origin : GERMANY

MOQ : 1pc

Price : $39

Payment Terms : T/T

Supply Ability : 100pcs/month

Delivery Time : 3-5days

Packaging Details : new in box

Description : Ifm Position Sensors Inductive Sensors For Limited Space Is5008

Warranty : 1year

Electrical design : NPN

Sensing range [mm : 9

Dimensions [mm : 9

Operating voltage [V : 9

Current consumption [mA : 9

Contact Now

Product characteristics

Electrical design	NPN
Output function	normally closed
Sensing range [mm]	2
Housing	rectangular
Dimensions [mm]	28 x 10 x 16

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	15; (24 V)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	NPN
Output function	normally closed
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	800
Short-circuit protection	yes
Overload protection	yes

Monitoring range

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.6

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch-point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-20...80
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	3 V
EN 55011	class B

MTTF [years]

2791

Mechanical data

Weight [g]	125
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	28 x 10 x 16
Material	PBT
Tightening torque [Nm]	< 0.5; (with washer)

Displays / operating elements

Display

Switching status

1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 6 m, PVC; 3 x 0.14 mm²

Product Tags:

IFM IS5008 inductive sensor

6M inductive proximity sensor

IFM pressure sensor with warranty

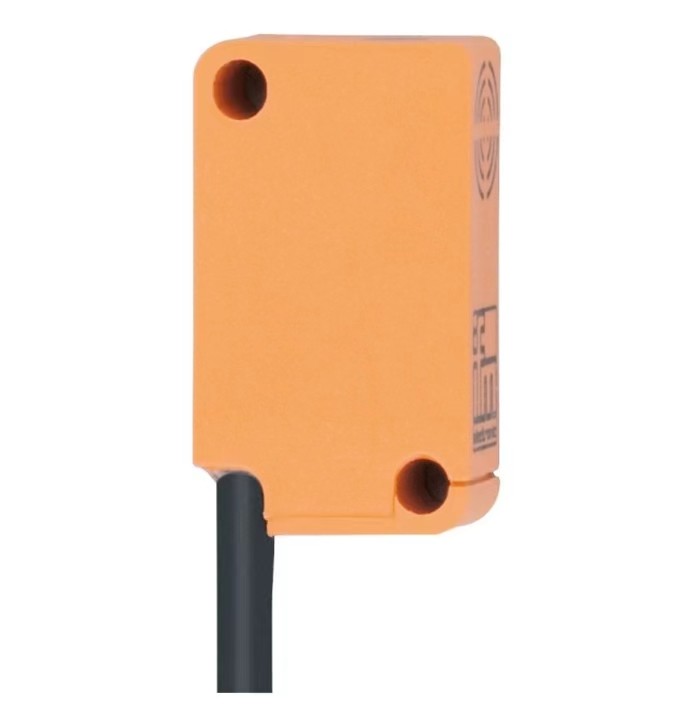

IFM IS5008 6M INDUCTIVE SENSOR Images
