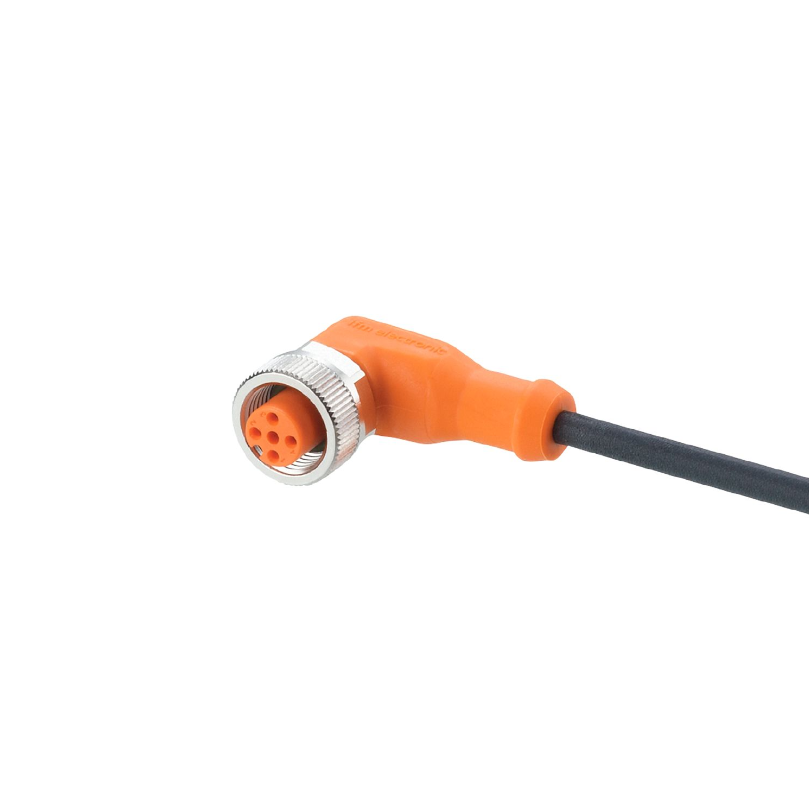

IFM Female cordset EVC006 ADOAH040MSS0010H04 Connector: 1 x M12, angled | part no: EVC006

Brand Name : IFM

Model Number : EVC006

Certification : 3C

Place of Origin : GERMANY

MOQ : 1

Price : $22.5/piece

Payment Terms : T/T

Supply Ability : 1piece in stock

Delivery Time : 3 day

Packaging Details : 100*100*100mm

Free from silicone : yes

Dimensions[mm] : 26.5 x 15.5 x 36.5

Weight[g] : 291

Contact Now

Please see the technical note under "Downloads"



Application
Special feature				Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone				yes
Electrical data
Operating voltage [V]				< 250 AC / < 300 DC
Protection class				II
Max. current load total			[A]	4
Operating conditions
Ambient temperature [°C]				-25...90
Note on ambient temperature				cULus: ...75
Ambient temperature (moving)			[°C]	-25...90
Note on ambient temperature (moving)				cULus: ...75
				-25...55
Storage temperature			[°C]
Storage humidity			[%]	10...100
Other climatic conditions for storage according to stated class				1K22/ DIN 60721-3-1
				IP 65; IP 67; IP 68; IP 69K
Protection
Mechanical data
Weight		[g]		340.7
Dimensions		[mm]		26.5 x 15.5 x 36.5
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC006-01 — 13.04.2023 —

EVC006
Connecting cable with socket
ADOAH040MSS0010H04
Moulded-body material				TPU
Material nut				brass, nickel-plated
Sealing material				FKM
Drag chain suitability				yes
Drag chain suitability				bending radius for flexible use	min. 10 x cable diameter
				travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
				bending cycles	> 5 Mio.
				torsional strain	± 180 °/m
Remarks
Notes Please see the technical note under "Downloads" Pack quantity 1 pcs.
Electrical connection
Cable: 10 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - socket
Connector: 1 x M12, angled; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold- plated; Tightening torque: 0.6...1.5 Nm
Connection
BK = BN = BU = WH =	Core colours : black brown blue white
