EL9185 Beckhoff Potential Distribution Terminal 4 X 24 V DC, 4 X 0 V DC

Brand Name : Beckhoff

Model Number : EL9185

Certification : CE

Place of Origin : Germany

MOQ : 1set

Price : $1--$1000

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100PCS/MONTHS

Delivery Time : 1-10 working days

Packaging Details : 100% original package

Model : EL9185

Warranty : 1 Year

Product Type : Potential distribution terminal

Shipping Weight : 0.5 Kg

Estimated Lead Time : 1-10 working days

Contact Now

EL9185 | Potential distribution terminal, 4 x 24 V DC, 4 x 0 V DC

Product Description

The EL9185 potential distribution terminal provides the supply voltage via the front-side terminal contacts.

24 V and 0 V can each be tapped 4x from the front. The power contacts are connected to the front-side terminal contacts and are passed through to the adjacent terminal. With the EL9185, the use of additional terminal blocks on the terminal strip can be reduced.

Product Information

Technical data

EL9185

Technology

potential distribution terminal

Current load

≤ 10 A

Nominal voltage

arbitrary up to 230 V AC/DC

Electrical isolation

500 V (E-bus/field potential)

Connection facility to additional power contact

4

Bit width in the process image

0

Housing width

12 mm

Side by side mounting on
EtherCAT Terminals with
power contact

only 2 power contacts

Weight

approx. 50 g

Operating/storage temperature

-25…+60°C/-40…+85°C

Pluggable wiring

for all ESxxxx terminals

Approvals/markings

CE, UL, ATEX, IECEx

Ex marking

ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc

Housing data

EL-12-8pin

ES-12-8pin

Design form

compact terminal housing with signal LEDs

terminal housing with pluggable wiring level

Material

polycarbonate

Dimensions (W x H x D)

12 mm x 100 mm x 68 mm

Installation

on 35 mm DIN rail, conforming to EN 60715 with lock

Side by side mounting by means of

double slot and key connection

Marking

labeling of the BZxxx series

Wiring

solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver

Connection cross-section

s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²

s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²

Connection cross-section AWG

s*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16

s*: AWG28…16,
st*: AWG28…16,
f*: AWG26…16

Stripping length

8…9 mm

9…10 mm

Current load power contacts

Imax: 10 A

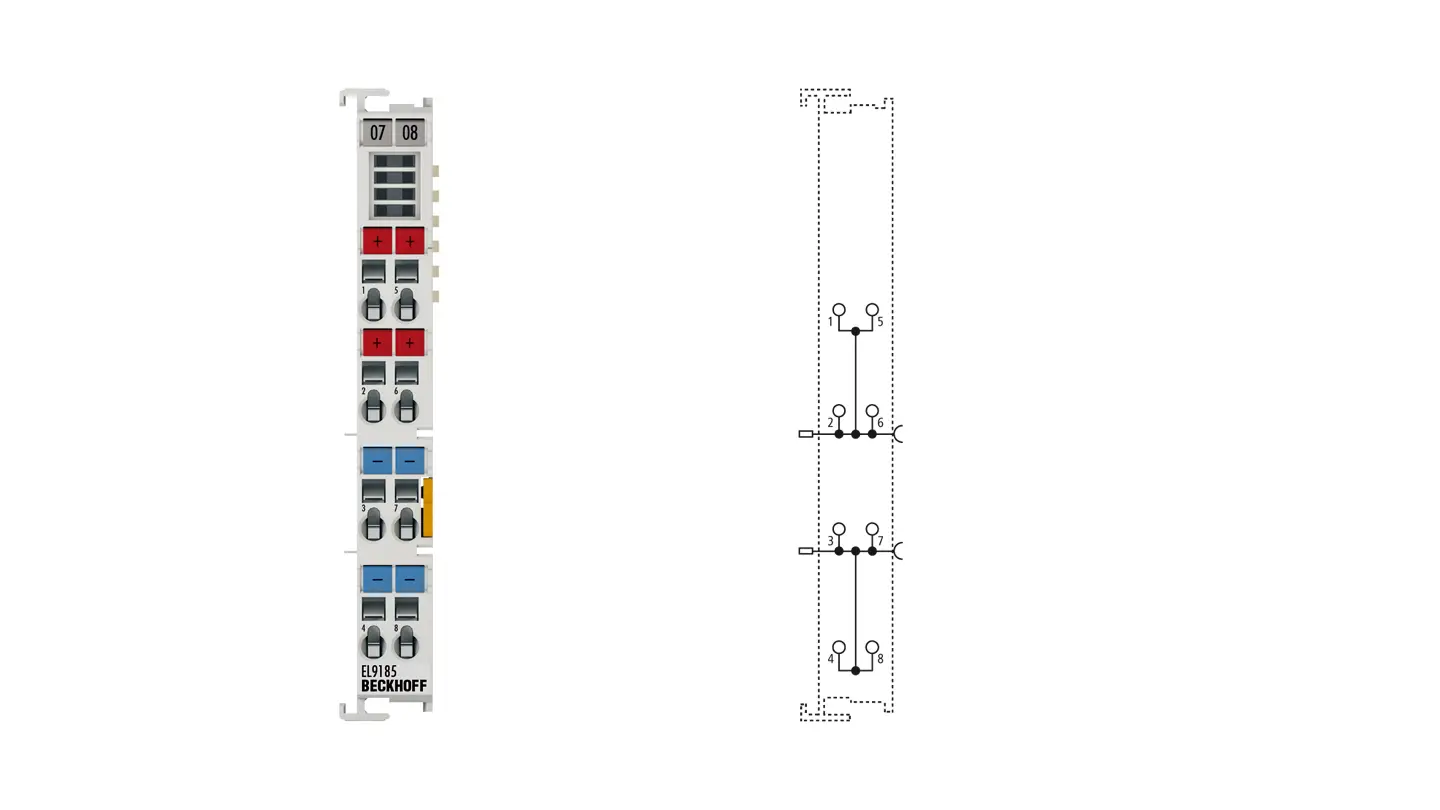

Product Photo

EL9185 Beckhoff Potential Distribution Terminal 4 X 24 V DC, 4 X 0 V DC

More Products

Ordering information

EL9185

Potential distribution terminal, 4 x 24 V DC, 4 x 0 V DC

ES9185

Potential distribution terminal, 4 x 24 V DC, 4 x 0 V DC, pluggable wiring
