Euchner C-M12F05-05X050PU05,0-GA-073462 Connecting Cable With Angled Plug Connector M12, 5-Pin

Product Categories
Xiamen ZhiCheng Automation Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Euchner C-M12F05-05X050PU05,0-GA-073462 Connecting Cable With Angled Plug Connector M12, 5-Pin

  • 1
  • 2

Brand Name : Euchner

Model Number : C-M12F05-05X050PU05,0-GA-073462

Place of Origin : Germany

MOQ : 1

Price : variable

Payment Terms : T/T

Supply Ability : 30PCS/WEEKS

Delivery Time : Negotiate

Packaging Details : Carton

Description : Euchner C-M12F05-05X050PU05,0-GA-073462 Connecting Cable

Ordernumber : 073462

Rated voltage : DC 63 V

Conductor cross-section : 0.5 mm²

Number of conductors : 5

Dynamic bending radius : 10 x cable diameter

Static bending radius : 5 x cable diameter

Cable type : straight

Cable length : 5 m

Contact Now

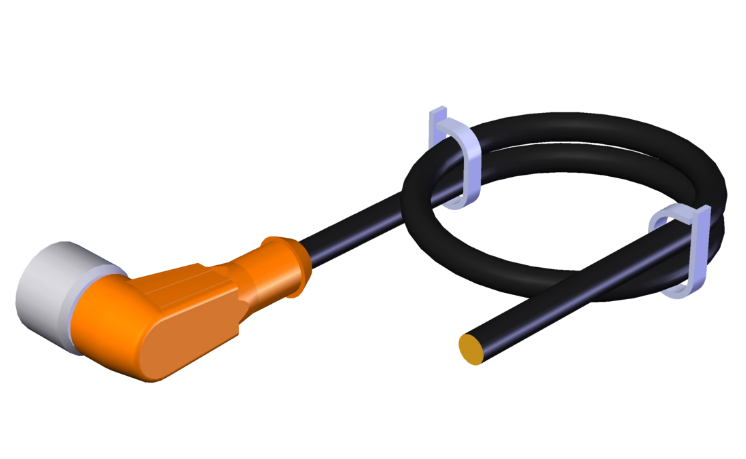

Euchner C-M12F05-05X050PU05,0-GA-073462 Connecting Cable With Angled Plug Connector M12, 5-Pin

M12 female plug, 4-pin + PE
Angled plug connector
PUR cable
Halogen-free
Cable length 5 m
With flying lead
Cores color-coded

​Mechanical values and environment

Sheath material PUR
Drag chain suitability Yes
Ambient temperature 　
static -25 ... 80 °C
Dynamic -25 ... 80 °C
Number of conductors 5
Type of cable straight
Cable length ht Cable length 5
Cable diameter 　
Approx. 5,4 mm
Conductor cross-section 0.5 mm²
Bending radius 　
Dynamic 10 x cable diameter
static 5 x cable diameter
　 Connection 1
Plug lock material CuZn
Connection Plug connector M12 x 1
Connection type Socket
Cable outlet Angle
Number of pins 5
Plug lock Screw connection
Plug housing material TPU
　 Connection 2
Conductor end Trimmed smooth
Connection Flying lead

Euchner C-M12F05-05X050PU05,0-GA-073462 Connecting Cable With Angled Plug Connector M12, 5-Pin
