Product Description

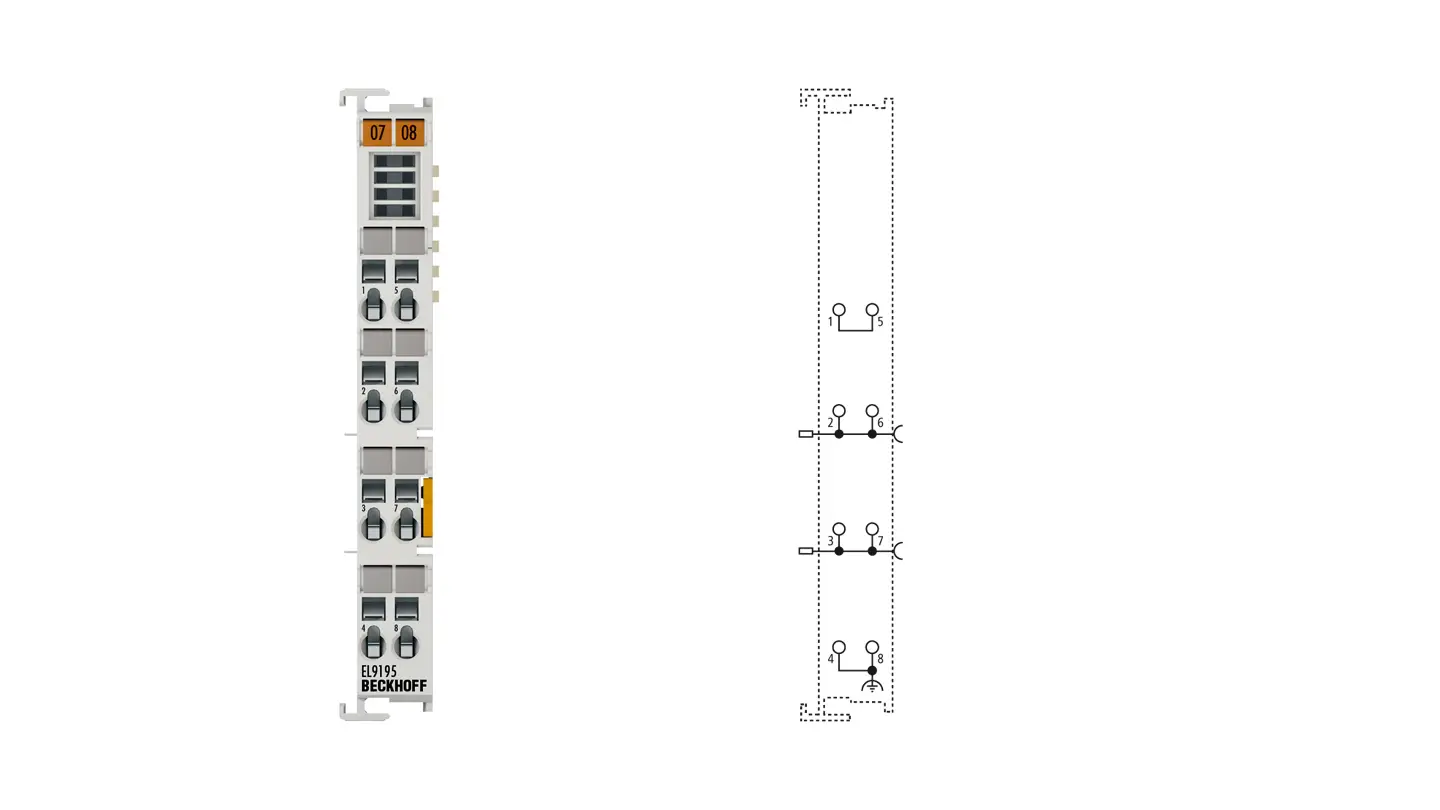

The EL9195 shield terminal enables the connection of the shield from the front via two terminal contacts, which are connected directly to the DIN rail, in order to be able to optimally dissipate electromagnetic irradiation.
The multiple tapping of the supply voltage via the front-side terminal contacts is additionally ensured by the EL9195 EtherCAT terminal. 24 V and 0 V can each be tapped twice from the front. The power contacts are connected to the front-side terminal contacts and are passed through to the adjacent terminal. With the EL9195, the use of additional terminal blocks on the terminal strip can be reduced.
Product Information
| Technical data | EL9195 |
| Technology | shield terminal |
| Current load | ≤ 10 A |
| Nominal voltage | arbitrary up to 230 V AC/DC |
| Electrical isolation | 500 V (E-bus/field potential) |
| Shield connection | 2 x |
| Connection facility to additional power contact | 2 |
| Bit width in the process image | 0 |
| Electrical connection to DIN rail | yes |
| Housing width | 12 mm |
| Side by side mounting on
EtherCAT Terminals with
power contact | only 2 power contacts |
| Special features | dissipation of EMC interference |
| Weight | approx. 50 g |
| Operating/storage temperature | 0…+55°C/-25…+85°C |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX, IECEx |
| Ex marking | ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc |
| Housing data | EL-12-8pin | ES-12-8pin |
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm² | s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16 | s*: AWG28…16,
st*: AWG28…16,
f*: AWG26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A |

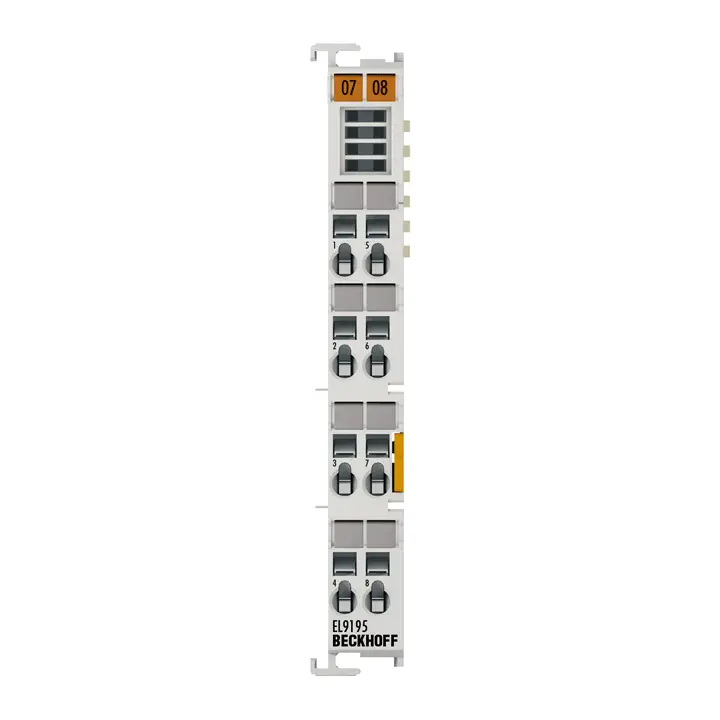

Product Photo
More Products
| Ordering information | |
| EL9195 | Shield terminal |
| ES9195 | Shield terminal, pluggable wiring |
