KL9010 Beckhoff IECEx Approved Beckhoff End Terminal
Product Description
The KL9010 bus end terminal is necessary for data exchange between the Bus Coupler and the Bus Terminals. Each assembly must be terminated at the right hand end with a KL9010 bus end terminal. The bus end terminal does not have any other function or connection facility.
Product Information
| Technical data | KL9010 |
| Current load | – |
| Integrated fine-wire fuse | – |
| Power LED | – |
| Defect LED | – |
| Diagnostics | – |
| Starting current | – |
| Current consumption K-bus | – |
| Nominal voltage | – |
| Electrical isolation | – |
| Reported to K-bus | – |
| PE contact | – |
| Shield connection | – |
| Renewed infeed | – |
| Connection facility to additional power contact | – |
| K-bus, looped through | –/yes |
| Bit width in the process image | 0 |
| Electrical connection to DIN rail | – |
| Housing width | 12 mm |
| Special features | end terminal for bus communication |
| Weight | approx. 50 g |
| Side by side mounting on Bus Terminals with power contact | yes |
| Side by side mounting on Bus Terminals without power contact | yes |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
| Approvals/markings | CE, UL, ATEX, IECEx, DNV GL, cFMus |
| Ex marking | ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc |
| Housing data | KL-12-8pin | KS-12-8pin |
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm² | s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16 | s*: AWG28…16,
st*: AWG28…16,
f*: AWG26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A |

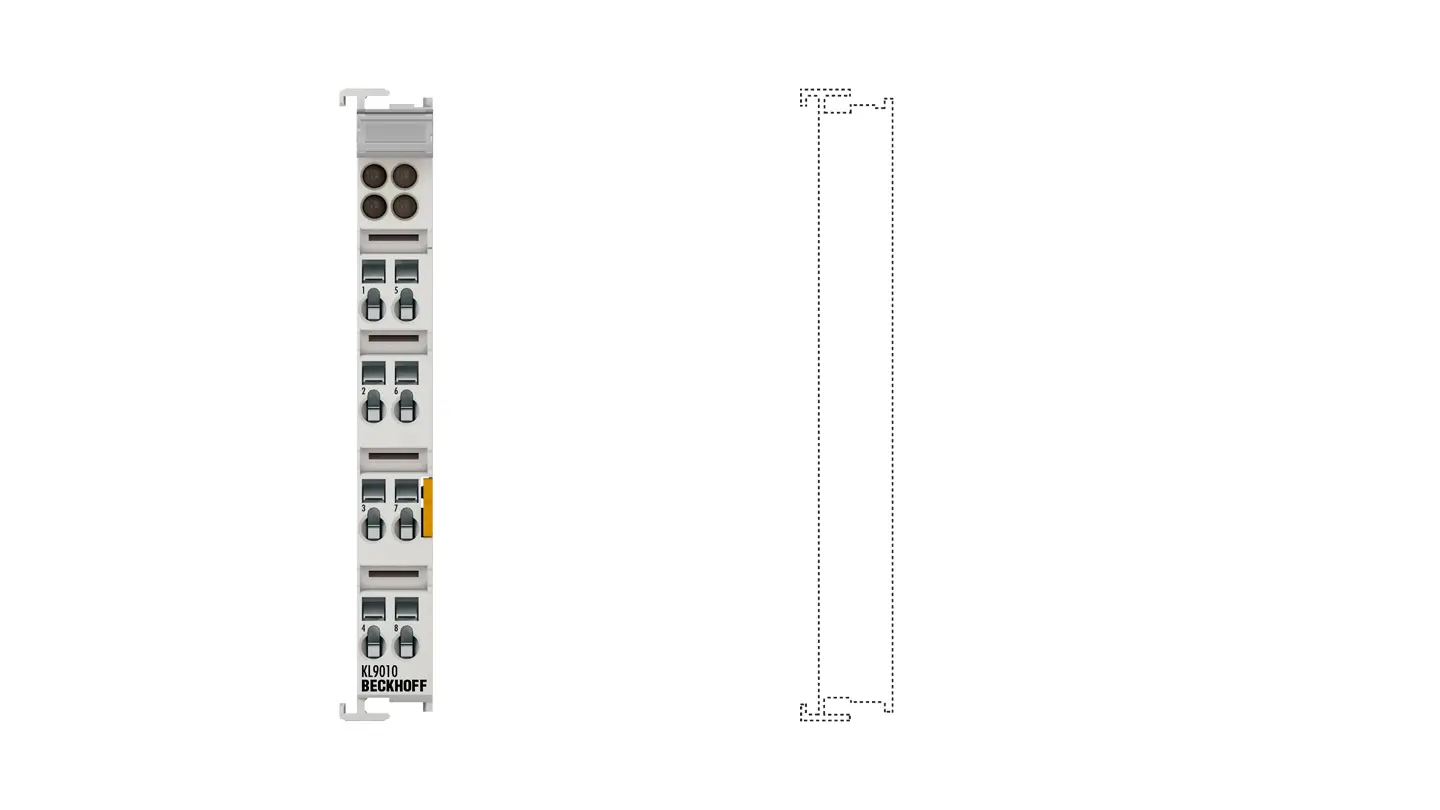

Product Photo
